AviProtek® E Low E Bird Safe Glass
AviProtek® E is an energy efficient bird friendly glass that reduces bird collisions while improving a building’s energy performance. Architects can choose from a variety of acid etched patterns, paired with a choice of Solarban® low emissivity coatings on surface two.
This bird safe glass is ideal for applications that require bird collision deterrence and energy performance. For applications that do not require low emissivity glass, or where both sides of the glass are exposed, we recommend the original AviProtek® Bird Friendly Glass.
Product Awards
- 2021 USGlass Magazine, Readers’ Choice Award
- 2021 Architectural Products Magazine, PIA Awards
- 2019 USGlass Magazine, Green Award
Bird Friendly Pattern Options
Dots and Squares Acid Etched Patterns

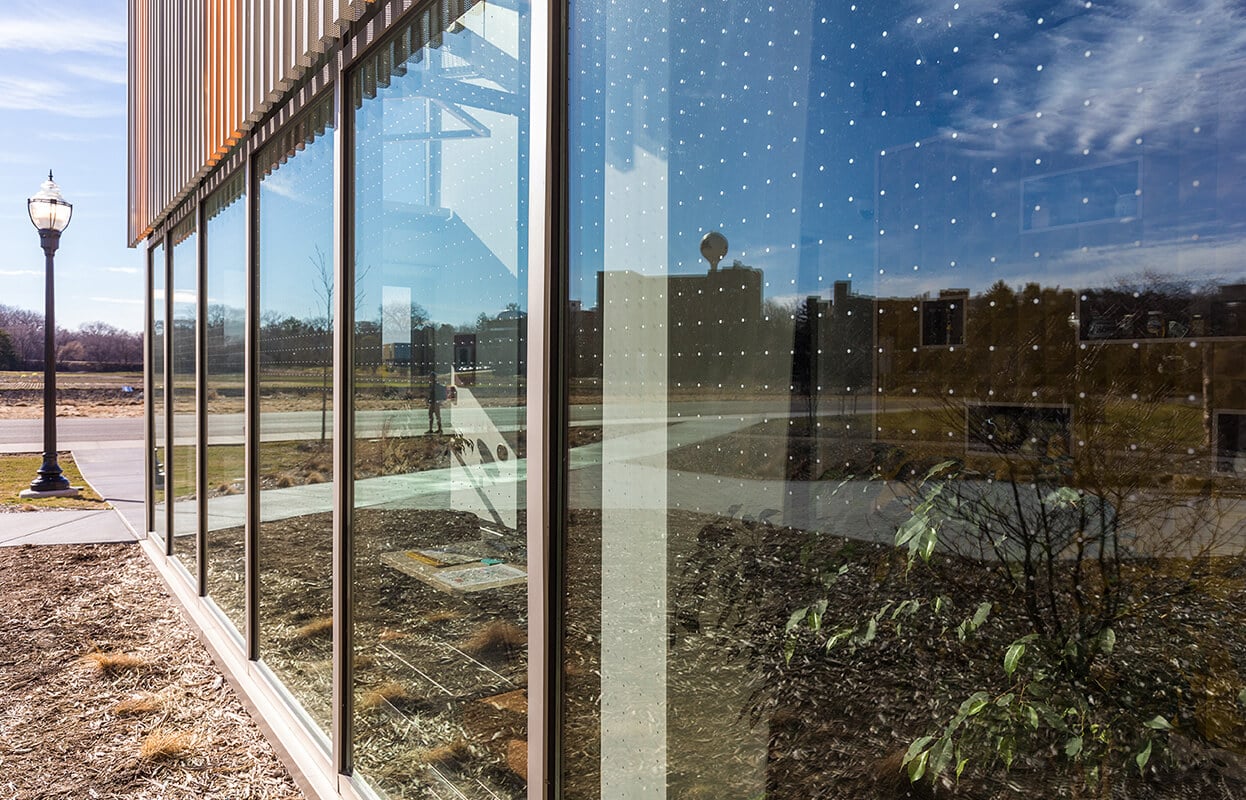

215
2’’ x 2’’ – 5mm Dots
216
4’’x 4’’ – 6mm Dots

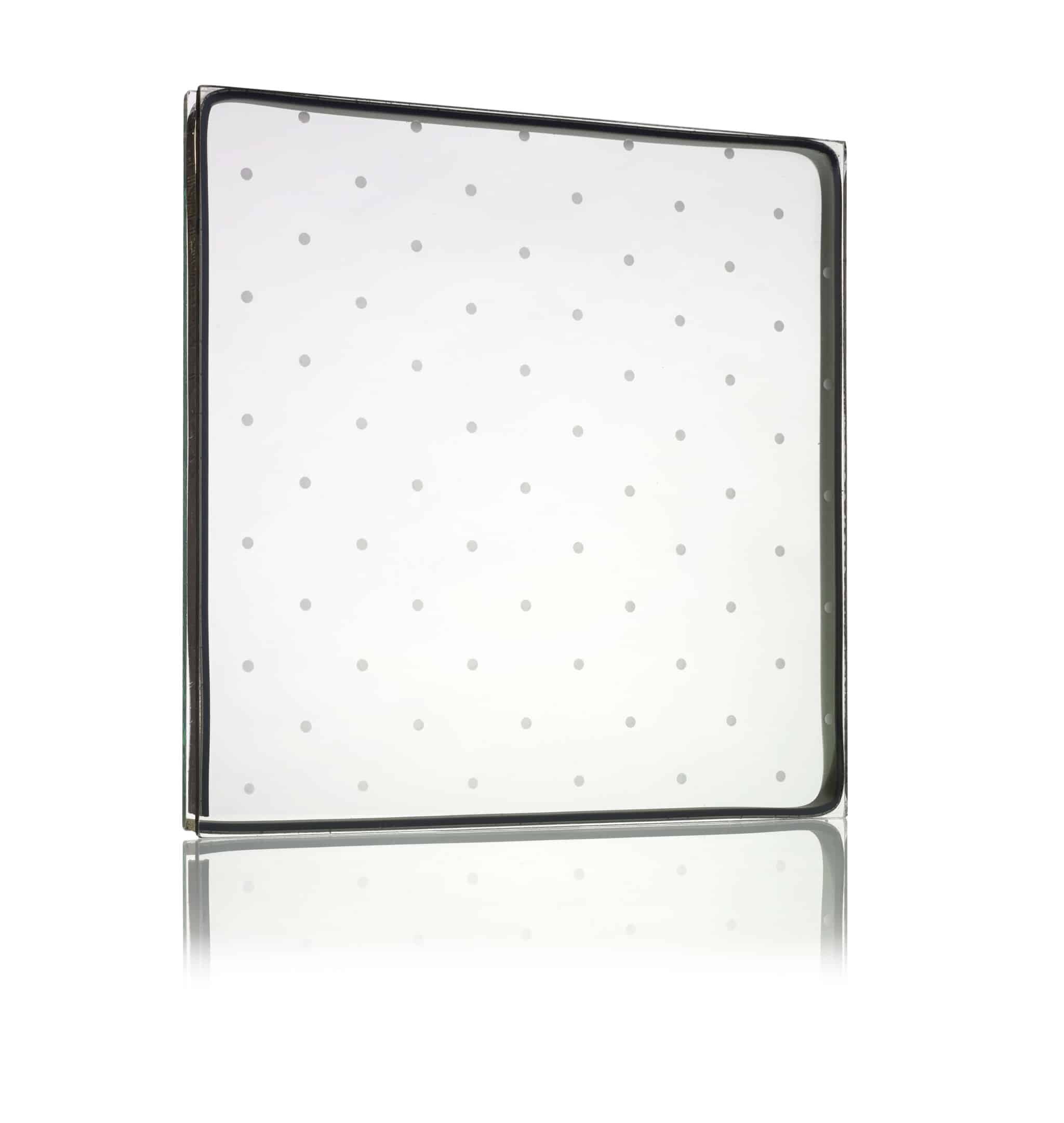

217
2’’ x 2’’ – 5mm Dots
221
2’’ x 4’’ – 6mm Dots
226
2” x 2” – 5mm Squares
227
2” x 4” – 5mm Squares
Linear and Custom Acid Etched Patterns
211
Vertical
214
Organic
Custom
Custom Design
Product Details
- Thickness: 6mm (1/4″)
- Dimensions: Standard 96’’ x 130’’
- Substrates: Clear and Starphire Ultra-Clear® glass by Vitro Architectural Glass, other substrates available on demand
- Minimum order quantity: 4,000lb (one block)
- Availability: AviProtek® E glass products are only available from members of the Vitro Certified™ Network.
- Energy: Available with Solarban® 60 and Solarban® 70 by Vitro, other coatings available on demand.
- Application: Exterior
- Surface: Etching is to be used on the exterior surface only
- Warranty: 10-year limited warranty against surface degradation. For all terms and conditions regarding the AviProtek® warranty, please contact our Customer Service Department.
- Warranty for the low-e coating: For more information, please communicate with the Vitro Customer Service Department.
AviProtek® E glass features bird friendly acid etched patterns on surface 1 and a low e coating on surface 2. The patterns are etched directly into the glass itself without any films or coatings, making this a durable and low-maintenance solution, and the surface-two placement of the low e coating supports maximum energy efficiency.
At a Glance:
Comparing AviProtek® Bird Safe Glass Options
| AviProtek® | AviProtek® E | AviProtek® T | |
|---|---|---|---|
| Bird friendly pattern | Acid-etched on surface 1 | Acid-etched on surface 1 | UV-reflective on surface 1 |
| Energy-efficient low-e coating | Can be used on surface 3 | Included on surface 2 | Can be used on surface 3 |
| Visibility of patterns to the human eye | Visible but unobtrusive | Visible but unobtrusive | Almost invisible |
| Compliant with bird safe design requirements across North America | Yes | Yes | Yes |
| Threat Factor ratings from ABC | Yes | Yes | No |
| Impact on light flow | No impact | No impact | Minimal impact |
| EPD and HPD available | Yes | Yes | Yes |
OSSTF Headquarters, Toronto, ON
Sustainability
LEED® Certification
AviProtek® E bird friendly glass can contribute to the following credits under LEED v4.1 Building Design + Construction (BD+C):
- Energy and Atmosphere
Optimize Energy Performance - Materials and Resources:
Building Product Disclosure and Optimization
Environmental Product Declaration
Material Ingredients - Indoor Environmental Quality
Low-Emitting Materials
Daylight
Quality Views - Innovation
Bird Collision Deterrence
Bird Safe Legislation
AviProtek® E provides architectural glass solutions that are compliant with all North American bird safe design models, including:
- CSA 460:10 Standard for Bird Friendly Glass
- New York City Local Law 15
- Toronto Green Standard
- San Francisco Standards for Bird-Safe Buildings
- and many more.
AviProtek® E products have also been tested and rated by the American Bird Conservancy.
To find the right solution for your area, please consult the AviProtek® eBook of Bird Friendly Glass for your region. These documents are available for download at no cost.
Documentation and Resources
Environmental Product Declarations and Health Product Declarations® (EPD and HPD®)
Request a copy of our EPD and HPD® for AviProtek® E glass from your Architectural Manager, or download the AviProtek® Environmental Data Sheet.
Warranty
AviProtek® E products are backed with a 10-year warranty against surface degradation. Since the markers are acid-etched directly onto the glass without any additional material, these products need no special care.
Guidelines for Product Selection
These references help you choose the best solution for your needs. Information includes:
- Product Selection Criteria
- Ordering Guidelines
- LEED Credits
- Product Specifications
- Properties and Performance Characteristics
- Warranty and Policy Statements
- Guidelines for Handling, Fabrication, and Cleaning
Architectural Team
Walker’s North American architectural managers are here to support you at every step of your bird friendly design process. Working on a bird safe project? We encourage you to reach out to the Architectural Manager for your region.
Frequently Asked Questions About Low E Bird Safe Glass
This FAQ section focuses on bird safe glass with a low e coating on surface two. For more questions and answers about bird friendly glass in general, we invite you to consult the AviProtek® FAQ section.
How does low e bird safe glass work?
Low-e bird safe glass combines two complementary technologies: a low-emissivity (low-e) coating on surface two to enhance thermal performance, and a bird friendly acid etched design on surface one that provides visible cues for birds to perceive the glass as a barrier and avoid collision.
The low e coating reflects long-wave infrared heat and selectively transmits visible light, reducing heat gain or heat loss depending on climate and unit configuration.
What is bird safe glass?
Bird safe glass, also known as bird friendly glass, bird glass, or bird frit, is a type of architectural glass product designed to prevent bird glass collisions. Birds can’t see glass, but they can see the visual markers on the surface of the product. As a result, they recognize the presence of a barrier and avoid collision.
Bird safe glass may incorporate acid etched patterns or UV reflective treatments, among other options.
What is low emissivity glass?
Low emissivity glass (often called “low-e glass”) is glazing that incorporates a thin chemical coating applied to a glass surface. This coating reduces the emissivity of the glass, meaning it reflects long-wave (thermal) radiation rather than allowing it to pass through, while maintaining or optimizing visible light transmission. The result is improved thermal insulation (lower U-value) and/or improved solar control (lower SHGC), depending on design.
Is AviProtek® E bird friendly low e glass available on tinted glass?
Yes, this energy efficient bird safe solution is available on tinted glass. We encourage you to validate the availability and minimum order quantity of tinted substrates with your Walker Glass Architectural Manager.
Does bird safe glass with low e affect natural light or the view through windows?
AviProtek® E acid etched markers are subtle and cover as little as 1% or less of the surface of the glass, so they maintain views through the glass and have no effect on daylighting. For details about the clarity and visible light transmittance of Solarban® low emissivity glass, please refer to their Technical Data Sheets, available from the Vitro Architectural Glass website.
What are the benefits of bird safe low e glass?
Bird safe low e glass offers a combination of performance and sustainability benefits tailored to both architects and glass fabricators:
- Energy Efficiency: The low e coating reduces heat transfer and/or solar heat gain, enabling compliance with energy codes and improving occupant comfort.
- Bird Collision Mitigation: The bird friendly surface treatment turns glass into a surface birds can detect and avoid, thereby reducing collisions and supporting wildlife conservation goals.
- Design Flexibility: These systems allow for large, transparent façades and high daylighting levels while meeting both aesthetic and performance demands, including bird safe building mandates and sustainability certifications like LEED.
- Regulatory & Sustainability Compliance: Many municipalities and green building programs now mandate or reward bird friendly glazing solutions. Combining that with low e addresses multiple specification drivers in one product.
- Fabrication and Installation Efficiency: For glass fabricators, delivering a single IGU with both low e and bird safe patterning simplifies logistics compared to separate products or retrofit treatments.
- Occupant Wellbeing & View Quality: Because good quality bird safe low e glass maintains high visible light and clarity, building occupants benefit from daylight, views and aesthetics, while birds benefit from reduced collision risk.
AviProtek® E Low-e Bird Friendly Glass
The AviProtek® E bird friendly glass solution combines acid-etched visual markers on the 1st surface with Vitro’s Solarban® high performance low e coating on the 2nd surface, creating the most effective bird friendly glazing solution while saving energy at the same time.
